MS30WPU Weatherproof Gate Maglock:
MS30 Weatherproof magnets are primarily used for locking of pedestrian and vehicle gates. The magnet is fitted into a stainless steel housing with cable gland fitted for conduit attachment and has extra thickness electroless nickel plating giving maximum protection.
- Protected to IP65
- Face Fix
- End cable gland standard. Rear cable exit is available as a special however you must contact us by phone to order this
- Up to 500Kg hold force
- 12v DC 250mA, 24v DC 500mA
- Brushed stainless steel case
- MS30WPU requires M20 conduit fitting

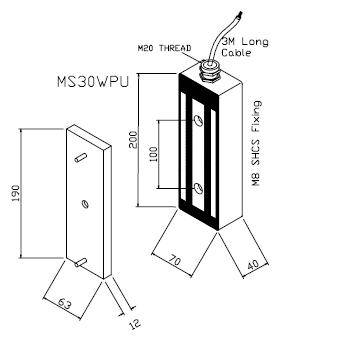

Dimensions:
Installation:

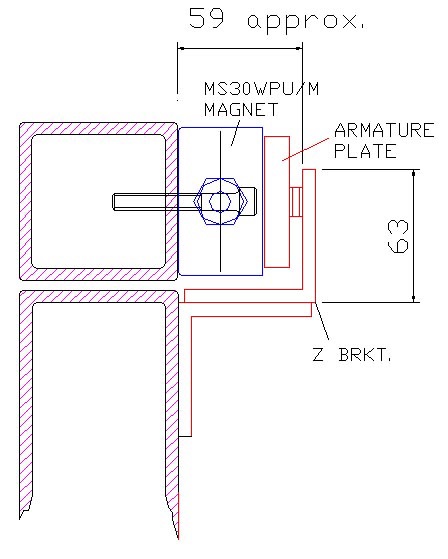

See a diagram below of how an MS30WPU could be fitted, using a Z bracket. The Z bracket can be bought below.
