MS30 Maxi Magnet

British manufactured high quality range of standard magnets



MS30 Installation Instructions


MS30 Maxi Magnet



  • Up to 600kg hold force
  • Single & double
  • Full width 1M and 2M housings
  • Horizontal or Vertical
  • Current draw: 12vdc 250mA -24vdc 500mA
  • Unmonitored or monitored
  • Door status reed switch optional
  • Satin anodised aluminium
  • Other colours to order

Order Codes:

MS30SSUSingle maxi magnet unmonitored
MS30DSUDouble maxi magnet unmonitored
MS30SSMSingle maxi magnet monitored
MS30DSMDouble maxi magnet monitored
Add suffix – DS for door position monitoring
Available in full length transom housings
MS30L1L bracket for inward opening doors
MS30ZZ bracket for inward opening doors
MS30T1L bracket for single outward opening doors
MS30T2L bracket for double outward opening doors
MS30ZCArchitectural cover for MS30Z
MS30TC1Architectural cover for MS30T1
MS30TC2Architectural cover for MS30T2

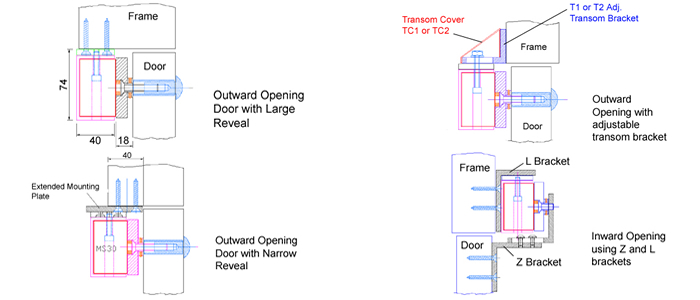

Architectural cover for Z bracket


Transom bracket for outward opening doors
(double shown)

L bracket for inward opening doors


Transom bracket and cover
shown with extended mounting plate

Additional Information

Magnetic Solutions

Enquire About This Product

SKU: ms30-maxi-magnet Category: Tags: , ,
