Budget Magnetic Locks

GB Lockings range of budget maglocks and accessories to suit all applications

Description
1011 series single standard magnet

Voltage: 12/24vdc
Current draw: 500mA @ 12vdc : 250mA @ 24vdc
Holding force: 1200lbs
Dimensions: 264mm x 68mm x 40mm

Options

1011M monitored magnet
SPDT contact 0.5A @ 12vdc

1022 series double standard magnet

Voltage: 12/24vdc
Current draw: 1A @ 12vdc : 500mA @ 24vdc
Holding force: 1200lbs per leaf
Dimensions: 532mm x 68mm x 40mm

Options

1022M monitored magnet
SPDT contact 0.5A @ 12vdc

1011ZL
Inswing bracket
1011ZLC
Inswing bracket
with cover
1011L
bracket
1011LC
bracket with cover

STD/S Surface armature housing





1211 series single mini magnet

Voltage: 12/24vdc
Current draw: 500mA @ 12vdc : 250mA @ 24vdc
Holding force: 600lbs
Dimensions: 250mm x 42mm x 26mm

Options

1211M monitored magnet
SPDT contact 0.5A @ 12vdc

1222 series double mini magnet

Voltage: 12/24vdc
Current draw: 1A @ 12vdc : 500mA @ 24vdc
Holding force: 600lbs per leaf
Dimensions: 500mm x 42mm x 26mm

Options

1222M monitored magnet
SPDT contact 0.5A @ 12vdc

1211ZL
Inswing bracket
1211ZLC
Inswing bracket
with cover
1211L
bracket
1211LC
bracket with cover

Mini/S Surface armature housing





1600 mortice magnet

Voltage: 12/24vdc
Current draw: 500mA @ 12vdc : 250mA @ 24vdc
Holding force: 600lbs
Dimensions: 230mm x 38mm x 27mm

Options

1600M monitored magnet
SPDT contact 0.5A @ 12vdc





Housings for 1600M

HZL/1 1M Horizontal housing for 1 x 1600 magnet
HZL/2 2M Horizontal housing for 2 x 1600 magnets
VERT/2 2M Vertical housing for 2 x 1600 magnets

1-MTL L bracket for 1M housing
2-MTL L bracket for 2M housing

Micro magnets

10003S side fix
170mm x 32mm x 24mm

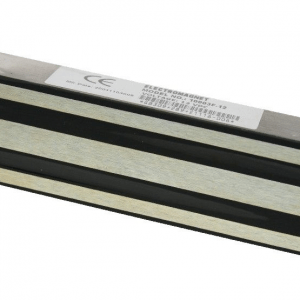

10003F face fix
170mm x 32mm x 24mm

10003M Mortice



Voltage: 12/24vdc
Current draw: 300mA @ 12vdc
Holding force: 300lbs

10003ZL
