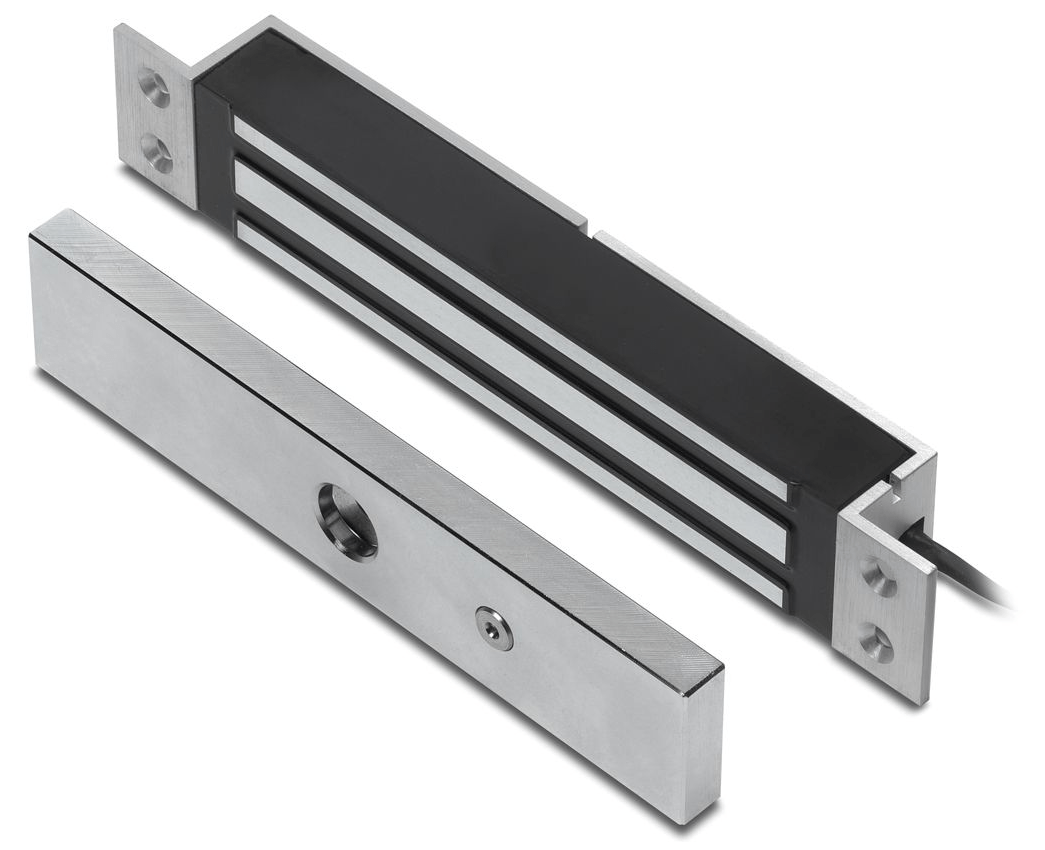

1600M Mini Mortice Magnet Monitored

£35.00

  • Operating voltage: 12Vdc or 24Vdc
  • Brushed stainless steel
Description

Specification:

  • Operating voltage: 12Vdc or 24Vdc
  • Brushed stainless steel
  • Voltage tolerance: 15%
  • Current draw: 500mA at 12Vdc 250mA at 24Vdc (at temperature 20øC)
  • Magnetic bond sensor monitor output (10000R) remotely monitors the door lock or unlock status. (N.C. Output- Door opened; N.O. Output-door closed) (SPDT rated 0.25A at 12Vdc)
  • Operating temperature: -10 ~ 55øC (14 to 131øF)
  • Humidity: 0 ~ 95% non-condensing
  • Locks surface temperature: Current temperature 20% (when power is on)
  • Holding force: Up to 600lbs (272kg)
  • Weight: 2.0kg (approx)
