6 series Electric Strikes

RCI High quality range of universal ANSI strikes

Description

Lock Compatibility Chart



Features & Benefits

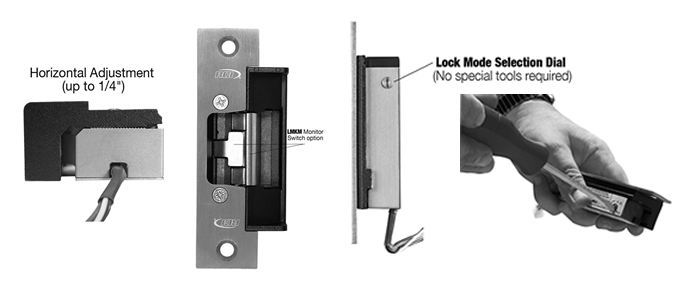

  • Field selectable lock mode – choose fail locked or fail unlocked with the turn of a dial (Fail unlocked mode requires DC voltage)
  • Field selectable voltage input – accommodates 12 or 24VDC and 12 to 24VAC (even 16VAC) in one strike!
  • ¼” Horizontal Adjustment
  • Dual Monitoring available (optional)
  • Modular “plug-in” wire connectors for ease of installation
  • Modular faceplate designs for a variety of frame types and cut outs
  • Stainless steel faceplate
  • Non – handed



Highlights

  • Field selectable lock mode
  • Field selectable voltage
  • Factory tested to over 1,000,000 cycles of operation
  • UL 1034 burglary resistant listed
  • UL listed for 1500 lbs static strength (faceplates 04 and 14)
  • Low profile version
  • Horizontal adjustability
  • Plug-in wire connectors
  • 3-year limited warranty



L65 / S65 Strikes

Low Profile version – The L65 accepts a latch bolt with up to 16mm* throw (*with 3mm door gap)

Standard Profile version – The S65 accepts a latch bolt with up to 19mm* throw (*with 3mm door gap)



Note: As standard we stock the Low Profile L65 version, S65 Standard Profile available to order.





Options & Accessories

LMKM – Latch Bolt / Keep Monitoring

Lip Extensions – 1”, 2” and 3” available

RCI6-SLEU-RH – Faceplate for Euro Din Sash-Lock Right Hand

RCI6-SLEU-LH – Faceplate for Euro Din Sash-Lock Left Hand

LMKM – The Latch Monitor is a SPDT switch with a trigger located in the strike cavity to indicate the presence of a latch bolt when the door is closed. The Keeper Monitor is a SPDT switch that will indicate when the keep moves from the closed to the open position.





Note: LMKM Switches are rated at 2ah @ 24VDC



*Ratings are based on maximum current draw at +10°C and include initial power-up current draw. Nominal resistance at +25°C +/- 7% tolerance.




S6504/L6504
(1-1/4” W x 4-7/8” H)
Aluminium

S6507/L6507
(1-1/4” W x 6-7/8” H)
Aluminium or Wood

S6508/L6508
(1-7/16” W x 7-5/16” H)
Aluminium or Wood
