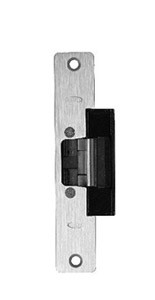

RCI S6507 Heavy Duty Electric Strike

The RCI S6507 Heavy Duty Electric Strike is a robust, high-performance solution designed for secure access control in commercial and high-security environments. This standard profile strike is engineered for maximum flexibility and reliability, featuring a stainless steel faceplate and a modular design that simplifies installation across a wide range of frame types and cut-outs.

With field-selectable lock mode, you can easily configure the strike for fail locked or fail unlocked operation (fail unlocked requires DC voltage). The field-selectable voltage input accommodates 12 or 24V DC and 12–24V AC power, eliminating the need for multiple models.

The S6507 also includes horizontal adjustment for precise alignment, supports dual monitoring (optional), and is factory-tested to over 1 million cycles, ensuring dependable performance in demanding applications.

RCI S6507 Heavy Duty Electric Strike Key Features & Benefits:

• Field Selectable Lock Mode: Easily set fail locked or fail unlocked operation
• Field Selectable Voltage: Compatible with 12/24V DC and 12–24V AC (even 16V AC)
• Horizontal Adjustment: Simplifies alignment and installation
• Dual Monitoring Available: Optional monitoring for latch bolt and keeper position
• Modular Plug-In Wire Connectors: Quick, clean installation
• Modular Faceplate Design: Fits a variety of frame types and cut-outs
• Non-Handed: Suitable for left- or right-hand doors
• High Strength & Durability:
  • UL 1034 burglary-resistant listed
  • UL listed for 1,500 lbs static strength (faceplates 04 and 14)
  • Factory-tested to over 1,000,000 cycles
• Standard Profile: Accepts latch bolts up to 19mm throw (with 3mm door gap)
• Stainless Steel Faceplate: Corrosion-resistant and built to last

Ideal for commercial doors, perimeter security, and high-traffic access control installations, the RCI S6507 Electric Strike delivers premium security with installer-friendly features.
