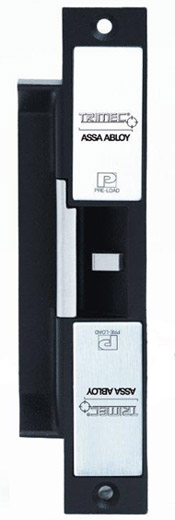

Trimec ES9000 Pre-Load Electric Strike

Trimec ES9000 Pre-Load Electric Strike

The Trimec ES9000 Pre-load Electric Strike has been designed to suit the harshest commercial environments, and has the ability to operate with up to 25kg of pre-load pressure on the keeper.

Description

Trimec ES9000 Pre-load Electric Strike

The Trimec ES9000 Pre-Load Electric Strike has the ability to operate with up to 25kg of side pressure on the keeper. Side pressure is caused by pulling or pushing a door before the strike unlocks or by differences in air pressure in the building.

Standard features include multi voltage 10 – 30Vdc and field changeable settings from fail safe to fail secure.

Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

Trimec ES9000 Specification:

Voltage: 12 or 24vdc

Current: 175mA @ 12vdc

88mA @ 24vdc

Monitoring: Latch & solenoid

1A NO/NC switch

Holding force: 850kg

Latch: Suitable for 15mm latch

Function: Site selectable

Applications

  • High traffic areas
  • Doors subjected to side load (pre load)
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems

Download ES9000 Brochure

Trimec ES9000 Pre-Load Electric Strike

Trimec ES9000 Pre-Load Electric Strike

Product Codes:Description:
119001-000Pre-load multi-function strike
119001-101Pre-load multi-function strike – lipless
119001-020Pre-load multi-function strike – 8mm ext lip
119001-060Pre-load multi-function strike – predrilled
220200-50525mm extension lip
220200-50650mm extension lip

All ES9000 strikes are supplied in fail safe condition although they can be changed to fail secure on site if required.
