Single Monitored Midi Magnet (EM350M)
Single Monitored Midi Magnet (EM350M)
£71.50
- Operating Voltage: 12 or 24Vdc
- Current draw: 500mA at 12Vdc 250mA at 24Vdc
Description

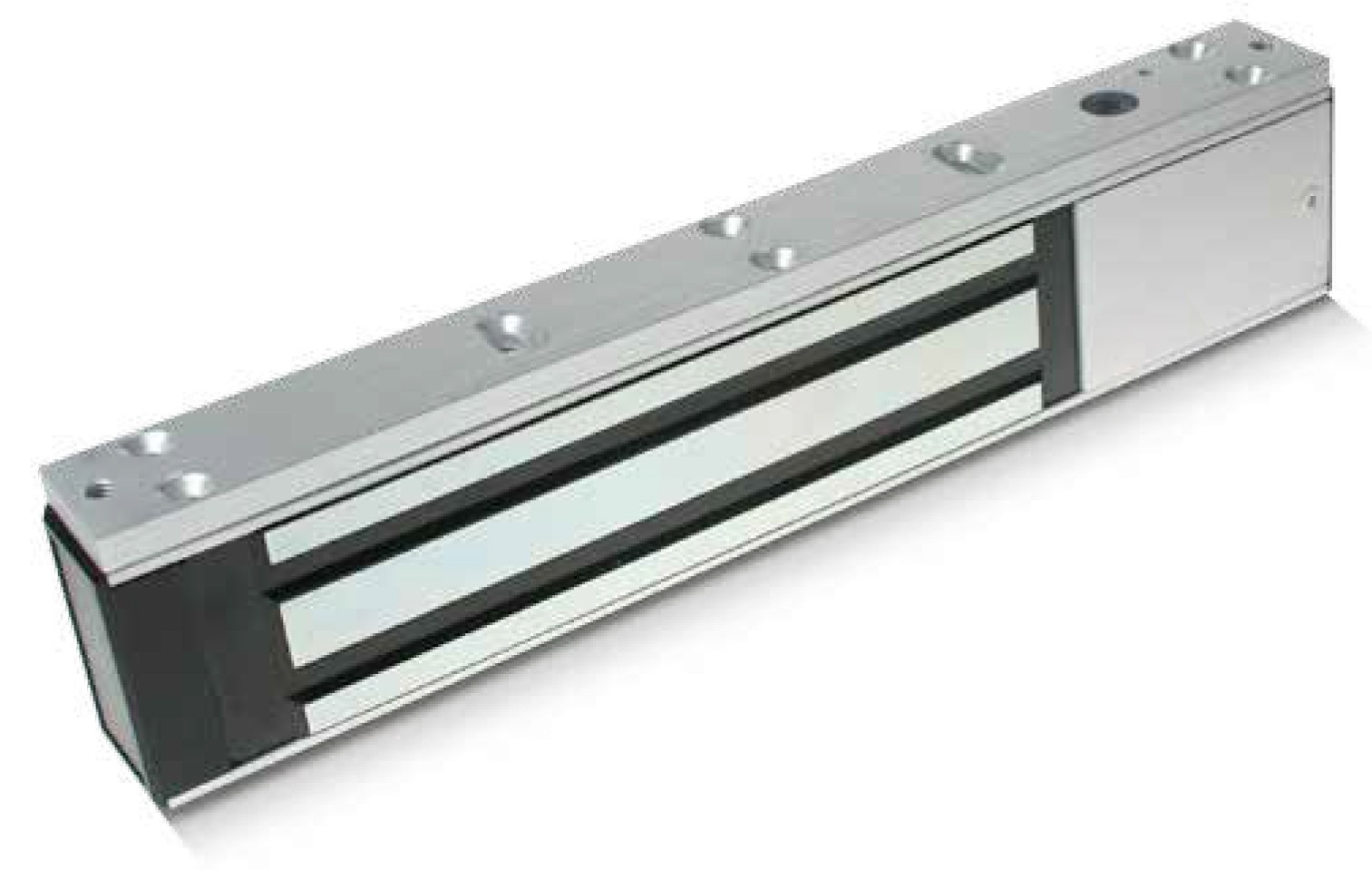

The EM350M Single Monitored Midi Magnet delivers powerful, reliable security for internal and perimeter doors. Designed for commercial and industrial access control applications, this electromagnetic lock offers up to 850 lbs (386 kg) of holding force, ensuring dependable protection against unauthorised access.
With an integrated magnetic bond sensor, the EM350M provides real-time lock status monitoring via an SPDT output (3A @ 12V DC)—ideal for integration with access control and alarm systems. A durable aluminium housing and dual voltage support make this magnet versatile and easy to install.
EM350M Single Monitored Midi Magnet Key Features:
- Strong Holding Force: Up to 850 lbs (386 kg) secure retention
- Dual Voltage Operation: 12V or 24V DC compatible
- Magnetic Bond Sensor Monitoring: SPDT output for real-time locked/unlocked status
- N.C. Output = Door opened
- N.O. Output = Door closed
- Low Power Consumption:
- 12V DC – 500mA
- 24V DC – 250mA (at 20°C)
- Durable Aluminium Construction: For long-term, maintenance-free performance
- Operating Temperature: -10°C to +55°C
- Humidity Tolerance: 0–95% non-condensing
- Compact Design: Surface-mount installation
- Approximate Weight: 5.0kg
Ideal Applications:
- Commercial office doors
- Internal secure areas
- Perimeter security doors
- High-traffic access control points
Upgrade your access control system with the EM350M Midi Magnet, combining robust holding force, live monitoring, and efficient power consumption in one professional-grade solution.
Additional Information
| Manufacturer | Budget |
|---|
