DB25 Deadlocking Bolts

The DB25 deadlocking bolt incorporates the latest design innovations to be applied to the manufacture of a transverse action deadlocking solenoid bolt. This Ultra-slim design enables fixing into very narrow sections

Description

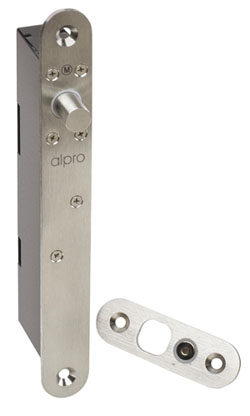

DB25

The DB25 deadlocking bolt incorporates the latest design innovations to be applied to the manufacture of a transverse action deadlocking solenoid bolt. This Ultra-slim design enables fixing into very narrow sections whilst an advanced microprocessor module provides power reduction allowing for continuous operation without heat generation as well as automatic voltage regulation, dual monitoring and access control features.

Holding force: 1000kg

Bolt throw: 16mm

Voltage: 12/24vdc

Current: 210mA @ 12vdc (1100mA activation)

90mA @ 24vdc (1A activation)

Monitoring: Bolt & door position

Faceplate: Radius & square available

Built-in access control module giving an automatic 8 secs unlock period

Product Codes:

DB25PTLFail open bolt – radiused
DB25PTOFail secure bolt – radiused
DB25SPTLFail open bolt – square faceplate
DB25SPTOFail secure bolt – square faceplate
DB25/SMH-KITSurface mounting kit

Dimensions:

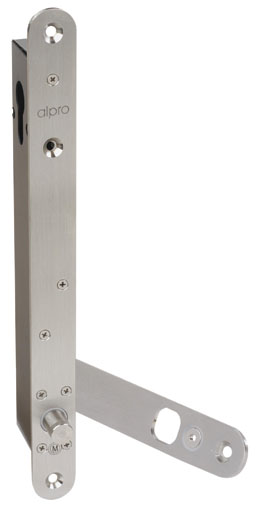

DB25KO

Holding force: 1000kg

Bolt throw: 16mm

Voltage: 12/24vdc

Current: 210mA @ 12vdc (1100mA activation)

90mA @ 24vdc (1A activation)

Monitoring: Bolt & door position & key position

Faceplate: Radius & square available

Built-in access control module giving an automatic 8 secs unlock period

Cylinder piercing for standard euro profile cylinder

Product Codes:

DB25KOPTLFail open bolt – radiused
DB25KOPTOFail secure bolt – radiused
For square corner faceplate add S to code
e.g. DB25SKOPTL
DB25KO/SMH-KITSurface mounting kit for DB25KO
DB25KO/SMH-DPGlass door kit – comprises 2 stainless steel dress plates

Dimensions:
