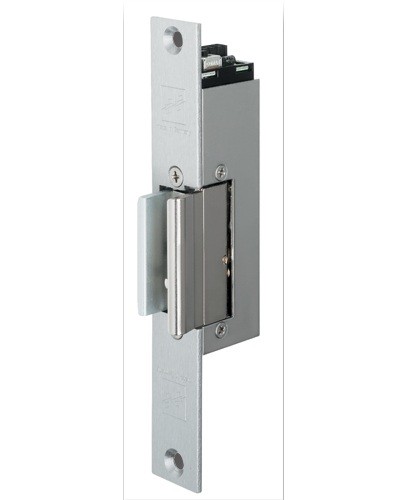

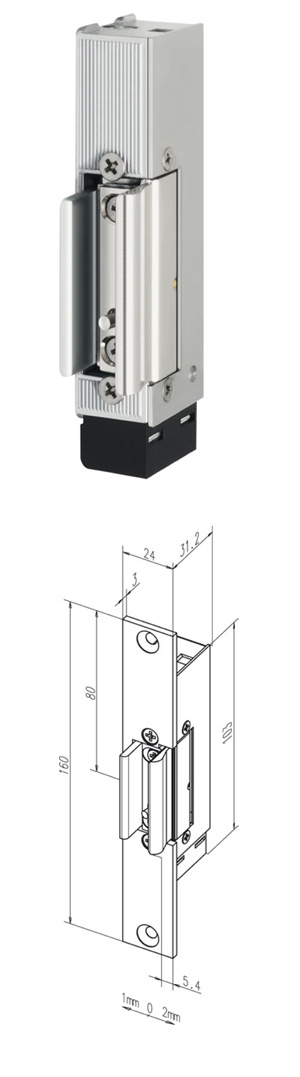

EFF 914U Glass Door Strike – Fail Locked
When the door is closed, the keep with fixing plate holds the door leaf in place at the same time.
The door must have a stop for the door leaf or be actuated by a door closer with adjustable closing force. In the case of two-leaf glass doors, a strike must be integrated at the top in the door frame for each leaf (not suitable for swing doors).
Models 914 and 914ZY are fastened with a securing pin to ensure that the strike latch is not locked unintentionally when the door is open.
The adjustable keep enables exact adjustment of the glass door strike to suit the glass thickness involved.
Changeover between the 12 and 24 V voltage range using a sliding switch: Easy, safe voltage selection is assured. Integrated TVS diode provides surge protection for direct and alternating currents. This single model means there is no longer a need to decide at the planning stages whether the system should be 12 or 24 volts, DC or AC current, and with or without diode as the door strike covers all these options.
Overview of Advantages
