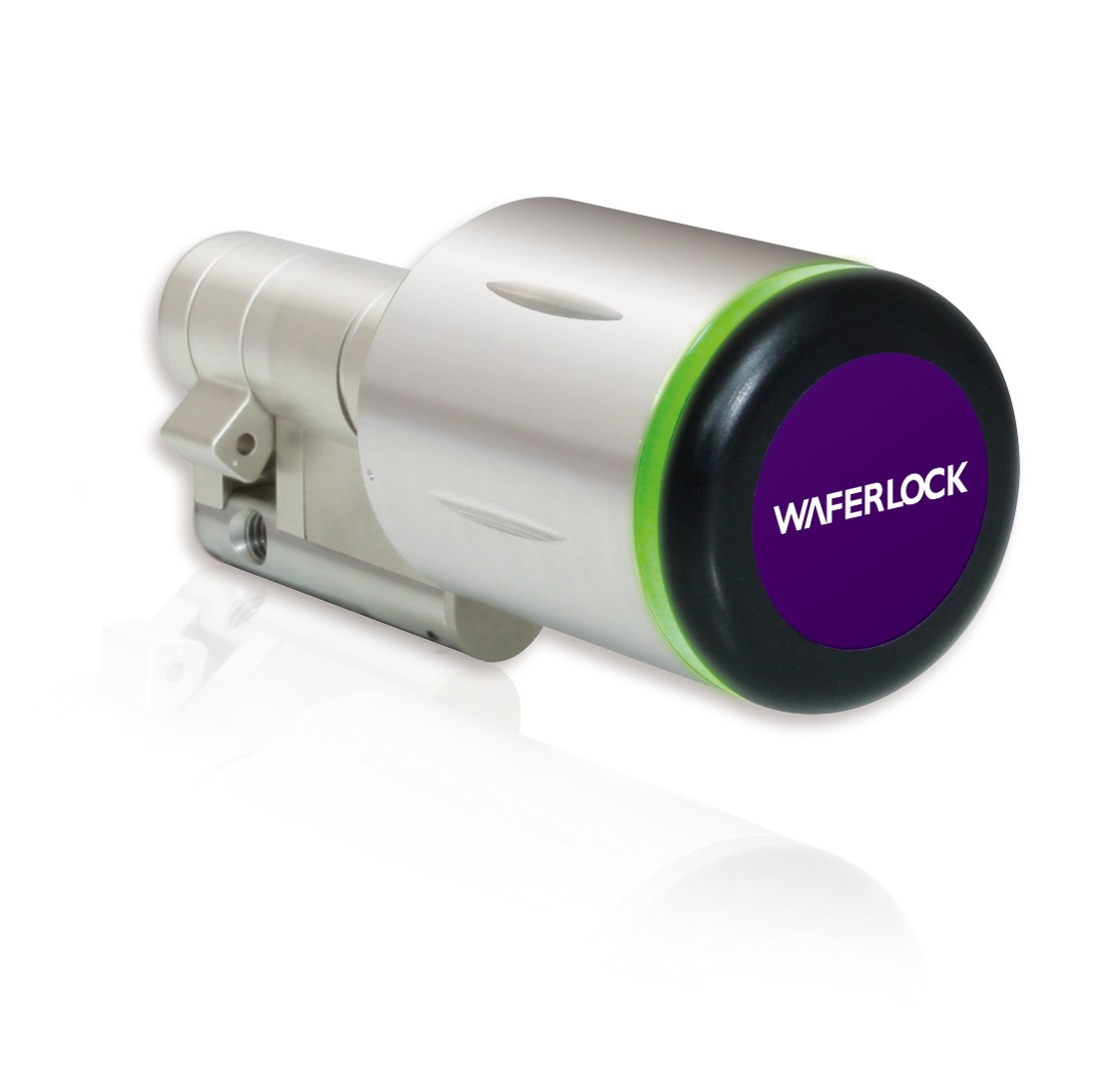

Waferlock CS700M Single Cylinder

Waferlock C-700/S00 IP67 Shadow Card Electronic Cylinders

The Waferlock CS700M is a new generation of IP67 waterproof electronic cylinders. At GB Locking Systems, we keep the 45mm cylinder in stock. If you require alternative sizes, please get in touch with our sales team.

WAFERLOCK CS700M MAIN FEATURES:

Transponder: MIFARE© Classic (13.56Mhz)*

• Opening mode:
  • 1. Standard (default 6 seconds)
  • 2. Passage Mode via Passage Toggle Card
• User cards can be easily deleted if lost using a shadow card
• Each lock supports up to 1000 users
• Smart sleep mode
• Acoustic Low Power Warning
• Emergency Power Pack available in case of flat batteries
• Transponder reading distance: up to 20mm
• Totally wire free
• Easy to fit in place of existing mechanical cylinders
• Firmware can be upgraded to change the locks to work on our e-Link system.

Waferlock CS700M Technical Specification:

• Battery life: standby 3 years or 40,000 operations
• Battery spec: CR2 x 3pc (* Double Cyl CR2 x 2pc)
• Environment:
  • IP67 Weather Rated
  • Operating Temperature -25øC to 70øC
• EN 1303 EURO Profile cylinder drill protection as standard,
• Anti Twist Stainless Steel Bar
• Standard Finish:
  • Knob: Satin Stainless Steel
  • Cylinder Body: Matt Nickel Plate

*MIFARE and MIFARE Classic are trademarks of NXP B.V
