MS15 Slimline Magnet

British manufactured high quality range of slim magnets

Description



MS15 Installation Instructions

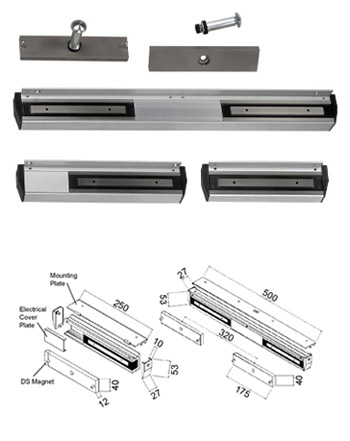

MS15 Slimline Magnet



Specifications

  • UK Manufactured
  • Easy fixing
  • Up to 300kg hold force
  • Unmonitored or Monitored locking
  • Shortened 200mm long single version option
  • Optional door status reed switch can be ordered.
  • Current draw 250mA @ 12vdc
  • Current draw 500mA @ 24vdc
  • Satin anodised aluminium
  • Other colours to order



Order Codes:

MS15SSUSingle slimline magnet unmonitored
MS15DSUDouble slimline magnet unmonitored
MS15SSMSingle slimline magnet monitored
MS15DSMDouble slimline magnet monitored
Add suffix – DS for door position monitoring
Short versions of magnet also available
MS15L1L bracket for inward opening doors
MS15ZZ bracket for inward opening doors
MS15T1L bracket for single outward opening doors
MS15T2L bracket for double outward opening doors
MS15ZCArchitectural cover for MS15Z
MS15TC1Architectural cover for MS15T1
MS15TC2Architectural cover for MS15T2
MSRL1Rear mounting bracket for single centre hung doors
MS15RL2Rear mounting bracket for double centre hung doors



















Accessories



Armature housings are available where drilling
through the door is not an option.
Surface and flush mount options are available.

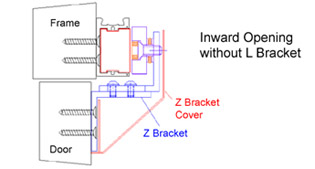

Z bracket for inward opening doors shown
with architectural cover.

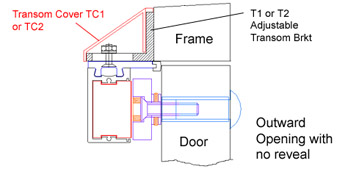

Transom bracket for outward opening doors shown
with architectural cover.





RL bracket for centre hung doors.
Single version shown.
