Exitguards

GB Locking Systems range of battery and mains powered door alarms for security of fire exit doors in supermarkets, hotels, restaurants and all types of public buildings.

Description
Exitguards

A range of battery and mains powered door alarms for security of fire exit doors in supermarkets, hotels, restaurants and all types of public buildings. It satisfies the needs of the fire & security officers. An integral high powered sounder is activated when the door is opened to warn those in the area that the door is open.

  • High powered sounder more than 108db at 1M
  • Six programmable alarm tones (2 loud, 2 moderate & 2 quiet)
  • Nine digit keypad for programming, silencing & resetting
  • Programmable auto reset function (0-88 secs)
  • Integral lid & unit tamper switch
  • Manager code to restrict users from changing various features monitor relay – EX205 only
  • Contact changes state whenever the unit is armed
  • Alarm relay output EX205 & EX206 only
  • Relay to signal an alarm condition to sounders or led, etc
  • DOTL Door open too long delays (0-88 mins)



EX204 Exitguard
EX204
H 125mm x W 175mm x D 50mm



EX104 Exitguard
EX104
H 125mm x W 175mm x D 50mm

EX105 Exitguard
EX105SF
H 125mm x W 180mm

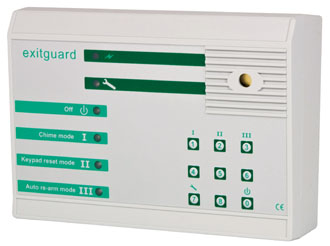

EX204
Battery powered for use where a separate psu is not available and the protected door is opened infrequently or there is no requirement to sound the sounder for long periods. If necessary the integral battery can be dispensed with and a separate 12vdc supply provided. The unit has a logic output signal for connection to a MULTIGUARD indicator and is supplied with 6 x AA batteries, door warning labels and fixing screws.

EX205
12vdc powered unit for use where the protected door may be opened frequently or the sounder may need to be on for long periods. This version can also be used as part of a system where it is necessary to interface with other equipment. There is a logic output for connection to a MULTIGUARD and there are volts free contacts for signalling on/off status and alarm conditions at remote points.

EX206
As EX205 but mains powered – 6 x AA batteries are provided for backup.

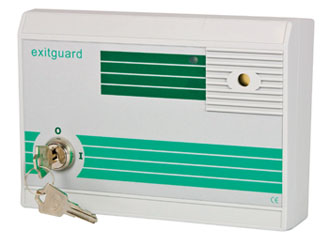

EX104
Similar for use in the same applications as the EX204 but the unit uses a 2 position keyswitch for setting the alarm.

EX105
Similar for use in the same applications as the EX205 but the unit uses a 2 position keyswitch for setting the alarm.

EX106
Similar for use in the same applications as the EX206 but the unit uses a 2 position keyswitch for setting the alarm.

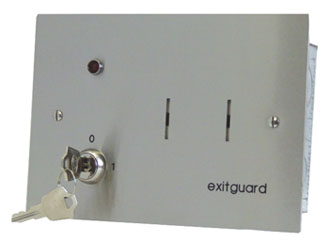

EX105SF
12vdc power unit as EX105 but flush stainless steel faceplate. Ideal for more prestigious or vandal prone areas. Also available in polished brass.
