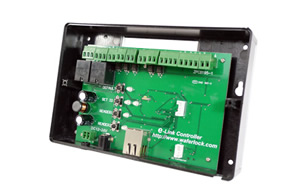

e-Link Wall Reader Controllers

e-Link Wall Reader Controllers

The innovative access control system from GB Locking Systems. The e-link system offers flexible configuration for small to large systems.System made up of online wall readers and standalone battery escutcheon locks and cylinders

e-Link Wall Reader Controllers

Main Features

• Max users: 64,000
• Max doors: 64,000
• Ability to adjust Daylight Saving Time
• Ability to validate an expired card through
e-Link Wall Reader
• Ability to have firmware upgraded by FDMS
• Emergency open / emergency close mode
programmed from software
• Ability to update (read/write) to the card through
e-Link Wall Reader.
1. Add user, delete user
2. Add calendar, DST setting
3. Enable / disable authorization by cards
4. Change opening mode for locks
• Events:
– Controller to PC: unlimited when online
• Time zones: 200
– Each time zone consists of 12 periods
• 128 calendars
• 2 Reader connections (in / out) Anti-Pass-back function
available with 2 e-Link Wall Readers.
• Outputs: 2 relay outputs
• If the network fails, the controller will continue to work
(If the unit is offline, 1024 events are stored in the memory
and are transferred when the unit is online)
• Encryption Code Protocol between PC & Controller




Technical Specifications

12vdc – 24vdc
Current draw250mA
NetworkOn-board TCP/IP board for RJ45 network connection
with CAT5 cable
Number of wall readers
CommunicationLink to wall reader by RS 485 cable
Number of relays2 (Rated at 7A @ 30vdc)
Inputs4 (monitored)
Exit button input(monitored)
Operating temperature-20°C to 70°C
CertificationCE certified

Offline Controller

If no network connection is available the WR-2500 can be supplied to work as an offline standalone controller. The controller can be re-programmed to work online.
